Main features of the PAC26 model:
- Rated current: 100 AAC/150 ADC – 1,000 AAC/1,400 ADC
- Output signal: DC and AC voltage
- Output / input ratio: 10 mV / A, 1 mV / A
- Output via lead and isolated Ø 4 mm male plugs
Digital Clamp Meters

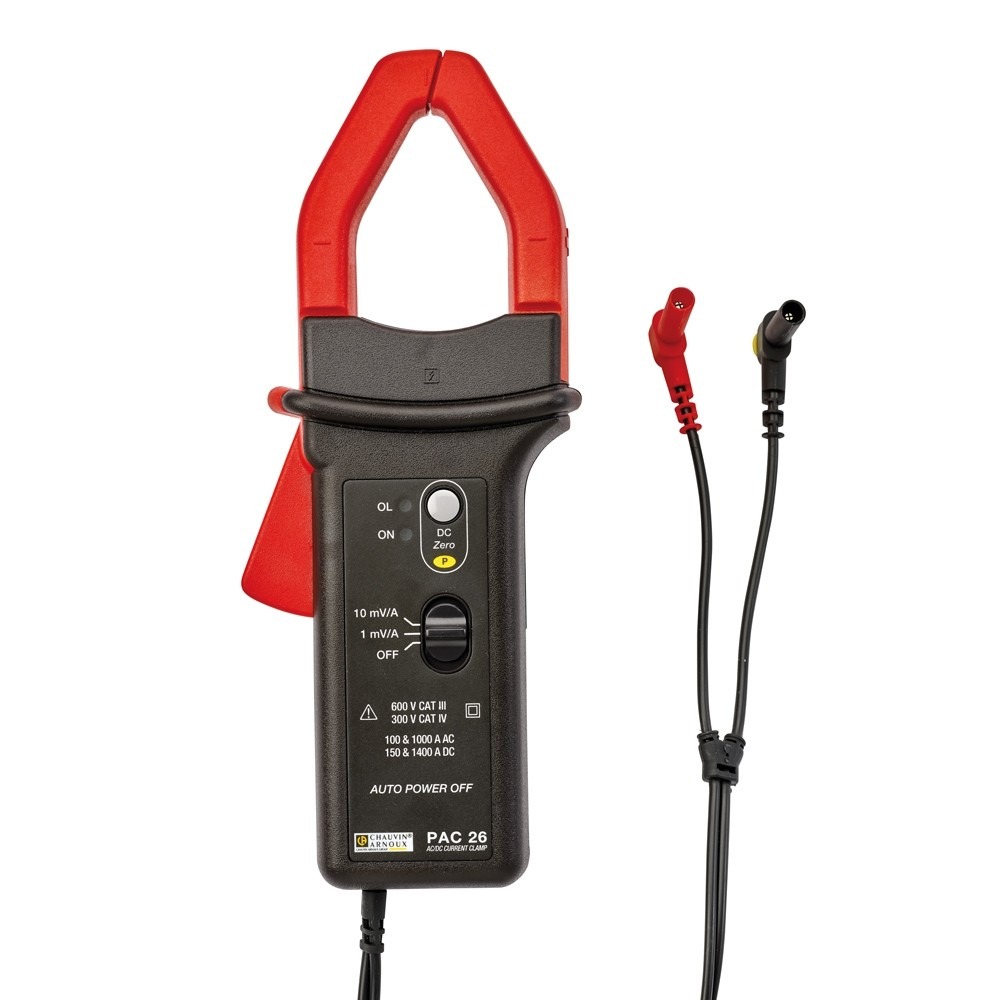

PAC 26
A clamp for direct and alternating currents up to 1,400 A.
The PAC Series is a range of Hall-effect current clamps for measuring direct and alternating currents.
2 forms are proposed to clamp cables up to 39 mm or 2×25.4 mm in diameter, as well as small busbars.
The range comprises PAC1x models and PAC2x models for higher currents.
This clamp has 2 sensitivities for better measurement resolution and accuracy, a simplified ZeroDC adjustment system and a deactivatable automatic standby function.
