Winding Resistance
Showing all 13 results
-
Electrical, Transformer Testing, Winding Resistance
Accessories for micro-ohmmeters
These accessories are used with micro-ohmmeters to ensure high-quality contact between the measurement probes and the object to be measured. They cover the whole range of applications by proposing sets of 2 x 1A and 10A pivoting or non-pivoting double test probes and Kelvin clamps or mini-clamps.
SKU: n/a -
Electrical, Transformer Testing, Winding Resistance
C.A 6240
Rugged and leakproof, the C.A 6240 is a top-of-the-range product designed for on-site, workshop or laboratory use.
It is ergonomic, lightweight and compact.Its wide LCD screen comprising 2 digital displays is particularly easy to read. It includes indications intended to facilitate implementation and interpretation of the measurements. The automatic measurement mode allows measurement to be triggered without pressing a button.
An automatic recording mode is also available.SKU: n/a -
Electrical, Transformer Testing, Winding Resistance
C.A 6255
An easy-to-use, high-performance instrument, the C.A 6255 micro-ohmmeter tests the quality of connections with precision (resolution of 0.1 µΩ) through the use of low resistance measurements.
-
4-wire measurement method, 1 µΩ to 2,500 Ω (7 ranges, 3 with a 10 A current)
automatic compensation of stray voltages at input terminals
3 measurement modes available depending on the application: inductive, non-inductive and non-inductive with automatic trigger
temperature compensation function for comparative results
programmable alarms / 1,500-measurement storage capacity
large backlit LCD display offering a wide range of symbols and indicators
50 V CAT III
Power supply: NiMH rechargeable battery
Dimensions: 270 x 250 x 180 mm; weight: 4 kg
SKU: n/a -
4-wire measurement method, 1 µΩ to 2,500 Ω (7 ranges, 3 with a 10 A current)
-
Electrical, Transformer Testing, Winding Resistance
C.A 6292
The C.A 6292 is supplied in a site-proof casing with clearly-identified connection terminalsto limit the risk of errors while also allowing quick connection of yourmeasurement leads.
The measurement results are displayedinstantaneously on the LCD screen, which is backlit for easy reading. The C.A 6292 can be configuredusing the rotary knob on the instrument or via a PC with the USB link.
The C.A 6292 can be used to measure in total safetyfor both people and equipment. The BSGmethod allows you to maintain theearthing on both sides of the object tested in order to remove any risk due toelectromagnetic induction phenomena. In this mode, the optional MR 6292 clampcan be used for current measurements up to 50 ADC.
The C.A 6292 can store in memory up to 8,000 measurement results.
SKU: n/a -
Electrical, Transformer Testing, Winding Resistance
MUX-R
MUX R Multiplexer for Transformer Testing: 100 Amps, 3 Channels, Demagnetization and Discharge
Raytech’s MUX R multiplexer is designed to drastically reduce cabling time and increase test performance.
It is made to be used with Raytech’s winding resistance and turns ratio meters. Any MUX R configuration can be easily controlled by a winding resistance meter’s touch panel or by remote control.
SKU: n/a -
Electrical, Transformer Testing, Winding Resistance
WR100-12R
WR100-12R: 100 Amp, 2 Channel Winding Resistance Meter with Demagnetization and Discharge
Raytech’s digital winding resistance meter WR100-12R is the winding resistance system with a most advanced demagnetizing circuit as a rack version.
It is designed for a high degree of accuracy for the measurement of very low resistance of any inductive load.
Unique Measuring Technique: This newly designed technique of measurement incorporates a high precision measurement circuit, a unique power source and the fastest discharge unit on the market.
Operation: The WR series of instruments apply a preset current level, selected by the user, from 0.025A to 100A. The results are reported on the easy-to-read color LCD display and can be stored.
Advanced Protection: Upon powering on, the system initializes itself with a self-calibrating, circuit checking sequence. If any problem is detected during initialization or operation, the operator will be notified immediately. The system constantly monitors the condition when turned on. The WR series has an extensive protection built into the circuitry.
SKU: n/a -
Electrical, Transformer Testing, Winding Resistance

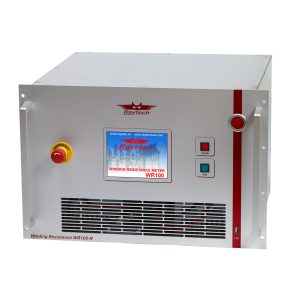

WR100-13R
WR100-13R: 100 Amp, 3 Channel Winding Resistance Meter with Demagnetization and Discharge
The WR100-13R winding resistance meter is the same instrument as the WR100-12R but with an additional measurement channel.
Because of its 3 voltage channels, it is able to measure 3 winding resistances at the same time. The current measurement range is user selectable from 0.025A to 100A.
Raytech’s digital winding resistance meter WR100-13R is the enhanced version winding resistance system with a most advanced demagnetizing circuit as a rack version. It is designed for a high degree of accuracy for the measurement of very low resistance of any inductive load
Unique Measuring Technique: This newly designed technique of measurement incorporates a high precision measurement circuit, a unique power source and the fastest discharge unit on the market.
Operation: The WR series of instruments apply a preset current level, selected by the user, from 0.025A to 100A. The results are reported on the easy-to-read color LCD display and can be stored.
Advanced Protection: Upon powering on, the system initializes itself with a self-calibrating, circuit checking sequence. If any problem is detected during initialization or operation, the operator will be notified immediately. The system constantly monitors the condition when turned on. The WR series has extensive protection built into the circuitry.
SKU: n/a -
Electrical, Transformer Testing, Winding Resistance
WR14
WR14: Battery-Operated, 15 Amp, 2 Channel Winding Resistance Meter with Demagnetization and Discharge
The WR14 winding resistance meter is a battery powered winding resistance system with a most advanced demagnetizing circuit. It is designed for a high degree of accuracy for the measurement of very low resistance of any inductive load.
It’s a lightweight system with its own rugged waterproof field case. The WR14 applies a preset current level, selected by the user, from 0.025A to 15A. The results are reported on the easy-to-read color LCD display and can be stored or printed.
Unique Measuring Technique: This newly designed technique of measurement incorporates a high precision measurement circuit, a unique power source, and the fastest discharge on the market.
Advanced Protection: Upon powering on, the system initializes itself with a self-calibrating, circuit checking sequence. If any problem is detected during this initialization period, or during operation, the operator will be notified immediately.
SKU: n/a -
Electrical, Transformer Testing, Winding Resistance
WR14 R
The WR14 R winding resistance meter is the same instrument as the WR14 but built into a 19″ rack housing.
Therefore, it can be used very well in test labs or be assembled into complete measurement systems. The WR14 R is a winding resistance system with a most advanced demagnetizing circuit. It is designed for a high degree of accuracy for the measurement of very low resistance of any inductive load. The WR14 R applies a preset current level, selected by the user, from 0.025A to 15A. The results are reported on the easy-to-read color LCD display and can be stored or printed.
Unique Measuring Technique: This newly designed technique of measurement incorporates a high precision measurement circuit, a unique power source, and the fastest discharge on the market.
Advanced Protection: Upon powering on, the system initializes itself with a self-calibrating, circuit checking sequence. If any problem is detected during this initialization period, or during operation, the operator will be notified immediately.
SKU: n/a -
Electrical, Transformer Testing, Winding Resistance

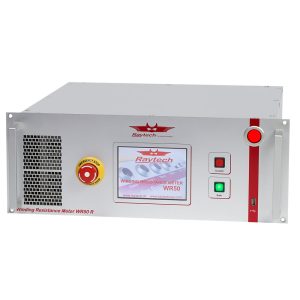

WR50-12
WR50-12: 50 Amp, 2 Channel Winding Resistance Meter with Demagnetization and Discharge
The winding resistance system with a most advanced demagnetizing circuit.
It is designed for a high degree of accuracy for the measurement of very low resistance of any inductive load. The results are reported on the easy-to-read color LCD display and can be stored or printed.
Unique Measuring Technique: This newly designed technique of measurement incorporates a high precision measurement circuit, a unique power source, and the fastest discharge on the market.
Operation: The WR series of instruments apply a preset current level, selected by the user, from 0.025A to 50A.
Compact Design: The WR50 is a lightweight system, designed with its own rugged waterproof field case.
Advanced Protection: Upon powering on, the system initializes itself with a self-calibrating, circuit checking sequence. If any problems are detected during initialization or operation, the operator will be notified immediately. The system constantly monitors the condition when turned on. The WR series has extensive protection built in to the circuitry.
SKU: n/a -
Electrical, Transformer Testing, Winding Resistance
WR50-13
WR50-13: 50 Amp, 3 Channel Winding Resistance Meter with Demagnetization and Discharge
The WR50-13 winding reistance meter is the same instrument as the WR50-12 but with an additional measurement channel.
Because of its 3 voltage channels, it is able to measure 3 winding resistances at the same time. The measurement range for current is user selectable, from 0.025A to 50A.
Raytech’s digital winding resistance meter WR50-13 is the enhanced version winding resistance system with a most advanced demagnetizing circuit. It is designed for a high degree of accuracy for the measurement of very low resistance of any inductive load.
Unique Measuring Technique: This newly designed technique of measurement incorporates a high precision measurement circuit, a unique power source, and the fastest discharge on the market.
Operation: The WR series of instruments apply a preset current level, selected by the user, from 0.025A to 50A. The results are reported on the easy-to-read color LCD display, and can be stored or printed.
Compact Design: The WR50 is a lightweight system, designed with its own rugged waterproof field case.
Advanced Protection: Upon powering on, the system initializes itself with a self-calibrating, circuit checking sequence. If any problem is detected during initialization or operation, the operator immediately will be notified. The system constantly monitors the condition when turned on. The WR series has extensive protection built into the circuitry. This is one of the many reasons we can extend our warranty to 5 years.
SKU: n/a -
Electrical, Transformer Testing, Winding Resistance
WR50-13R
The WR50-13R winding resistance meter is the same instrument as the WR50-13 but built into a 19” rack housing.
Therefore, it can be used very well in test labs or be assembled into complete measurement systems.
Raytech’s digital winding resistance meter WR50-13R is the enhanced version winding resistance system with a most advanced demagnetizing circuit as a rack version. It is designed for a high degree of accuracy for the measurement of very low resistance of any inductive load.
Unique Measuring Technique: This newly designed technique of measurement incorporates a high precision measurement circuit, a unique power source, and the fastest discharge on the market.
Operation: The WR series of instruments apply a preset current level, selected by the user, from 0.025A to 50A. The results are reported on the easy-to-read color LCD display and can be stored.
Advanced Protection: Upon powering on, the system initializes itself with a self-calibrating, circuit checking sequence. If any problem is detected during initialization or operation, the operator will be notified immediately. The system constantly monitors the condition when turned on. The WR series have extensive protection built into the circuitry.
SKU: n/a
