High Voltage Testers

The 8120-5PL-A is HIPOTRONICS’ 120 kV DC Hipot solution for testing insulation strength of electrical apparatus. The controller is outfitted with a rugged field case and our high voltage transformer is inside a steel tank, making this unit ideal for field or factory use.

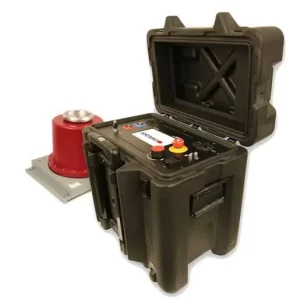

“The HVT-DI AC Hipot is a modern solution for testing insulation strength of electrical apparatus. Outfitted with state-of-the-art digital interface, and extensive safety features, the HVT-DI series ensures simplistic operation, the most accurate results, and operator safety under all circumstances. The HVT-DI series meets ANSI/SIA A92.2 specifications and the 120kV model is specifically designed to test insulating booms on work platforms and bucket trucks.Accurate voltage and current measurements are measured via voltage readings that are taken directly at the output of the high voltage transformer bonnet and current leakage current measurements are taken in the return leg.All controls are self-contained in a rugged and durable enclosure.”

HIPOTRONICS’ model 7BT60 is a piece of portable 60 kV AC (center tapped) dielectric testing equipment designed to test the integrity of vacuum interrupters in switchgear. The output (current limited to 10 mA) is programmed to raise voltage at a preset rate to the desired test level.Once the unit reaches the preset voltage a dwell timer will hold the voltage at that level for the preset time duration. After the dwell time has elapsed, the unit will return to zero.Any failure during the test will be indicated on a failure lamp located on the front panel, and the breakdown voltage will be indicated on the Memory kV meter.

The 800PL Series Hipot is a modern solution for testing the insulation strength of electrical apparatus. Outfitted with a state-of-the-art digital interface, and extensive safety features, this robust unit ensures simplistic operation, accurate results, and operator safety under all circumstances. And if a longer duty cycle is required, the 880PL-HD model is the perfect solution for your testing needs.

The HD100 Series Benchtop AC and DC [Hipot testers] are accurate and durable instruments designed to perform hipot tests on all types of electrical products, systems, and components. They are simple to operate and are designed for use by unskilled or semi-skilled personnel in production testing for AC and DC dielectric withstand testing.The AC/DC output configuration eliminates the need for purchasing separate AC and DC hipots. Output connected voltmeter ensures accurate voltage measurements regardless of output loading. they are capable of testing to most industry specifications such as UL, CSA, VDE, IEC, and MIL for dielectric withstand testing.The HD 100 Series Consists of: Model HD103, ~0-3kV DC/2.5kV AC at 5mA max currentModel HD106, ~0-6kV DC/5.5kV AC at 5mA max currentModel HD115, ~0-15kV DC/12.5kV AC at 5mA max currentModel HD125, ~0-25kV DC/10kV AC at 5mA max current Model HD140, ~0-40kV DC/15.5kV AC at 5mA max currentThis product contains an environmentally-friendly natural ester-based fluid made from renewable vegetable-based oil. To read more, read our FR3 datasheet.
